SILENCERAFS.F PLUS B

Inner Duct Construction

3 ply Aluminium + 1 ply Polyester] (Perforated) / Barrier

Nominal Thickness of Inner Duct

74 Micron

Jacket Construction

1 ply Aluminium + 2 ply Polyester

Nominal Thickness of Jacket

45 Micron

Insulation-Thickness-Density

Glasswool 25 mm - 16 kg/m³

Diameter Range(Ø)

82 mm - 508 mm

Wire Spacing

Operating Temperature Range

-30 °C / +150 °C

Air Velocity

30 m/s (Max)

Operating Pressure

2500 Pa (Max)

Standard Lenght

Packing

Reaction to Fire

Collar Type

Standard Length(excluding collar)

1 m

Standard Length(including collar)

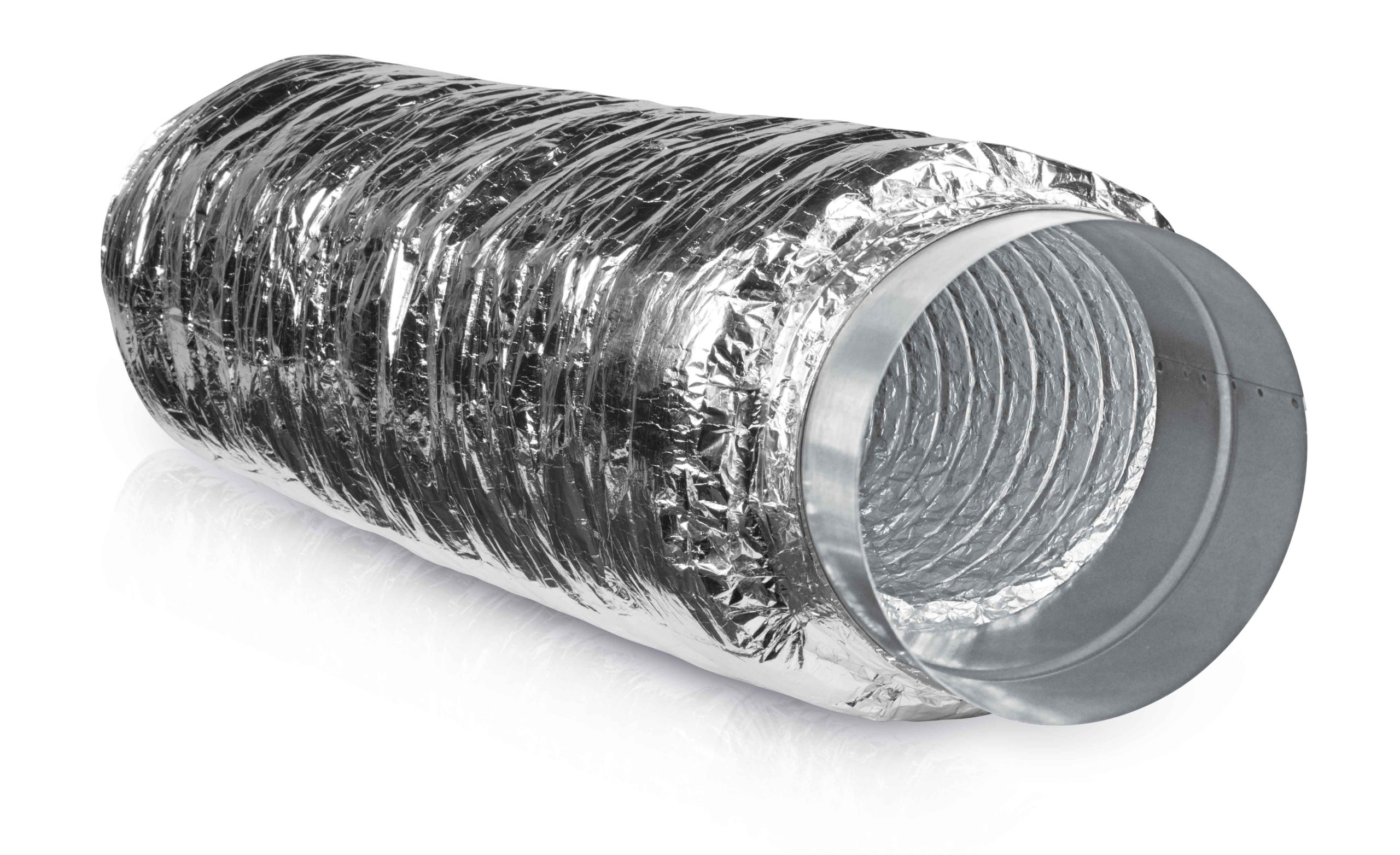

SILENCERAFS.F PLUS B circular duct type multipurpose sound absorbers are specifically produced for low and medium pressure heating, cooling, ventilation, and air conditioning systems.

SILENCERAFS.F PLUS B is produced from multi-layer aluminium and polyester (perforated), strengthened with high tension hard steel spring wire, surrounded with glass wool insulation.

The insulation material is surrounded with either a plain aluminium vapour barrier or a multi-layer aluminium and polyester, high tension hard steel spring wire reinforced jacket.

SILENCERAFS PLUS B is available both in Difficult to ignite and Limited combustibility versions.

SILENCERAFS PLUS B can be easily fitted to circular, oval, or rectangular connectors.

SILENCERAFS PLUS B has been tested and certified by various international bodies.

SILENCERAFS.F PLUS B

SILENCERAFS.F PLUS B
